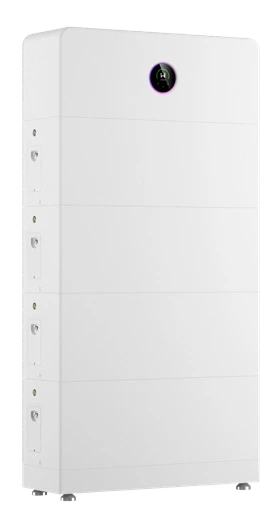

GoodWe
ESA series
An all-in-one solar and storage system with UPS-level whole-home backup.
Specifications
- Usable capacity
- 5–108 kWh (5/8 kWh modules, up to 48 kWh per stack, up to 6 stacks in parallel)
- Warranty
- Confirmed during assessment
- Form factor
- Floor-stacked or wall-mounted all-in-one (integrated inverter)
- Backup capable
- Yes
- Inverter notes
- Integrated 3–10 kW single-phase hybrid inverter; UPS-level whole-home backup (63 A bypass, <4 ms switchover) with no separate gateway. Warranty terms confirmed during assessment.
- Battery chemistry
- LiFePO4 (lithium iron phosphate)
- Inverter range
- 3–10 kW single-phase hybrid (integrated)
- Battery modules
- 5 kWh and 8 kWh, 1C charge/discharge, mixable in one stack
- System capacity
- 5–48 kWh per stack; up to 6 stacks in parallel (108 kWh)
- Usable energy per module
- 5.0 / 8.0 kWh (100% DoD test conditions)
- Cycle life
- ≥8,000–10,000 cycles (module dependent)
- Backup
- UPS-level whole-home backup, 63 A bypass, <4 ms switchover
- Protection
- IP66
- Noise
- <30 dB (fanless)
- Monitoring
- LED, WLAN + app; RS485, WiFi, LAN, Bluetooth
Best for
GoodWe ESA is a fully integrated single-phase all-in-one combining a 3–10 kW hybrid inverter with 5 kWh and 8 kWh battery modules, scaling to 48 kWh per stack and up to six stacks in parallel.
The supplied datasheet specifies UPS-level whole-home backup with a 63 A bypass and sub-4 ms switchover, IP66 protection, fanless operation under 30 dB and app-based monitoring.
Warranty terms are not specified in this datasheet and are confirmed during assessment.
- Integrated 3–10 kW single-phase hybrid inverter
- 5–48 kWh per stack, up to six stacks in parallel
- UPS-level whole-home backup, 63 A bypass, <4 ms switchover
- IP66 protection and fanless operation under 30 dB
Source: supplied GoodWe ESA Australian datasheet. Capacity and cycle figures are module/configuration dependent; warranty is not specified.
Product information is based on Esena's published Solar Products catalogue and supplied manufacturer datasheets. Availability, configuration and compatibility are confirmed during assessment.
