Hinen
A-Series

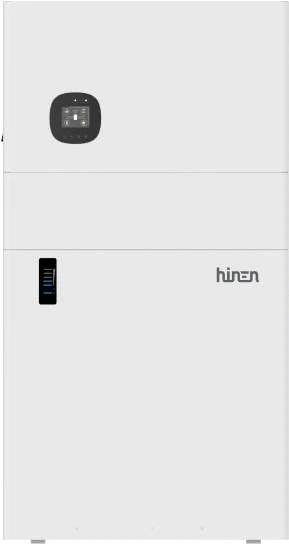

A 14.4 kWh single-module high-voltage battery paired with an integrated A-series hybrid inverter.
Specifications
- Usable capacity
- 13.68–68.40 kWh usable (14.4–72 kWh rated, 1–5 × 14.4 kWh modules)
- Warranty
- Battery 12 years or 63.07 MWh throughput, whichever comes first; inverter 5 or 10 years depending on installation site
- Form factor
- Floor-standing stackable all-in-one (integrated inverter)
- Backup capable
- Yes
- Inverter notes
- Integrated A-series hybrid inverter: 3.6/4.6/5 kW or 8/10 kW single-phase, or 15 kW three-phase. Backup port with ≤10 ms switchover, built-in changeover switch and grid-forming function; generator input is not available in the Australian version. Backup scope and final configuration confirmed during assessment.
- Battery chemistry
- LiFePO4 (lithium iron phosphate)
- Battery module
- B14400-H / B14400-HW
- Rated energy per module
- 14.4 kWh
- System energy
- 14.4–72 kWh (1–5 modules)
- Usable energy
- 13.68–68.40 kWh (95% depth of discharge)
- Depth of discharge
- 95%
- Cycle life
- ≥8,000 cycles (95% DoD, 0.2C charge / 0.5C discharge at 25°C)
- Nominal voltage
- 288 V DC; operating 225–324 V DC
- Maximum charge / discharge
- 50 A; 16.2 kW
- Scalability
- Up to 5 modules in parallel
- Inverter options
- 3.6 / 4.6 / 5 kW and 8 / 10 kW single-phase; 15 kW three-phase
- Backup
- Backup port, ≤10 ms switchover, built-in changeover switch, grid-forming function
- Efficiency
- Up to 97.5% (single-phase models); up to 98.0% (15 kW three-phase model)
- Protection
- IP65
- Operating temperature
- Charge 0°C to +55°C, discharge −20°C to +60°C; −20°C charging with battery heating option
- Module dimensions (W × H × D)
- 730 × 740 × 179.5 mm
- Module weight
- 117 kg
- Installation
- Floor stand, indoor or outdoor
- Monitoring
- LCD + app; RS485, CAN, Ethernet, WLAN
- Maximum altitude
- 2,000 m (battery)
- Australian certification
- RCM listed among manufacturer certifications
Best for
Hinen's A-Series pairs an integrated A-series hybrid inverter with the B14400-H / B14400-HW high-voltage battery, a 14.4 kWh module with up to five modules providing 72 kWh rated energy.
The supplied brochure specifies 13.68–68.40 kWh usable energy at 95% depth of discharge, at least 8,000 cycles under its stated 95% DoD, 0.2C charge / 0.5C discharge and 25°C test conditions, IP65 protection and indoor or outdoor floor-stand installation.
Inverter options span 3.6, 4.6, 5, 8 and 10 kW single-phase models and a 15 kW three-phase model, with a backup port, built-in changeover switch and ≤10 ms switchover. Generator input is not available in the Australian version. Supported backup loads are assessed for the selected model; this is not a universal whole-home backup claim.
Battery warranty is stated as 12 years or a 63.07 MWh minimum energy throughput, whichever comes first. Inverter warranty is stated as 5 or 10 years depending on the final installation site, and the brochure refers to Hinen's warranty policy for conditions.
- 14.4 kWh per module, stacking to 72 kWh rated across up to five modules
- 13.68–68.40 kWh usable energy at 95% depth of discharge
- Backup port with built-in changeover switch and ≤10 ms switchover
- Single-phase 3.6–10 kW and three-phase 15 kW all-in-one options
- IP65 rated for indoor or outdoor floor-stand installation
Source: supplied Hinen A-Series All-in-One brochure specification tables. Australian generator-input exclusion and separate battery/inverter warranties apply.
