Pylontech
Force H3

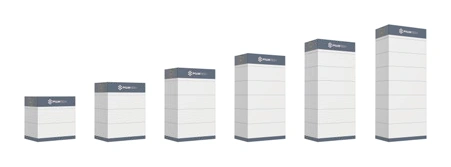

A high-voltage stackable battery that scales from 10.24 to 35.84 kWh per tower.
Specifications
- Usable capacity
- 9.69–34.01 kWh usable (10.24–35.84 kWh system, 2–7 × 5.12 kWh modules)
- Warranty
- Confirmed during assessment
- Form factor
- Floor-standing stackable modules
- Backup capable
- Confirmed with system configuration
- Inverter notes
- High-voltage battery; communicates via Modbus RTU/CAN with compatible hybrid inverters. Warranty terms and backup configuration confirmed during assessment.
- Battery chemistry
- LiFePO4 (lithium iron phosphate)
- Module capacity
- 5.12 kWh (FH10050)
- System capacity
- 10.24–35.84 kWh (2–7 modules)
- Usable capacity
- 9.69–34.01 kWh
- Depth of discharge
- 95%
- Cycle life
- >8,000 cycles (@25°C)
- Design life
- 15+ years (@25°C)
- Parallel expansion
- Up to 6 groups in parallel
- Protection
- IP55
- Operating temperature (charge)
- −10°C to +55°C
- Communication
- Modbus RTU / CAN
Best for
Pylontech Force H3 is a high-voltage, stackable lithium iron phosphate battery built from 5.12 kWh modules, scaling from 10.24 kWh to 35.84 kWh per tower with up to six groups in parallel.
The supplied datasheet specifies a 95% depth of discharge, more than 8,000 cycles and a 15-plus-year design life, with Modbus RTU/CAN communication to compatible hybrid inverters.
Warranty terms, compatible inverter selection and backup configuration are not specified in this datasheet and are confirmed during assessment.
- 5.12 kWh modules, stackable to 35.84 kWh per tower
- 95% depth of discharge and >8,000-cycle life
- Up to six groups in parallel for larger capacity requirements
- IP55 protection and −10°C to +55°C charge operating range
Source: supplied Pylontech Force H3 datasheet.
Product information is based on Esena's published Solar Products catalogue and supplied manufacturer datasheets. Availability, configuration and compatibility are confirmed during assessment.
