Sigenergy

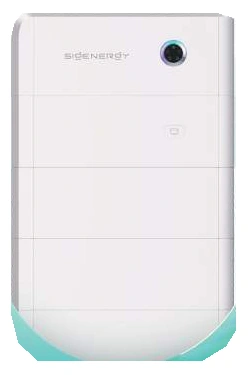

SigenStor
Modular battery storage with an integrated energy controller and mySigen monitoring.
Specifications
- Usable capacity
- 5.2–23.4 kWh usable per single-phase configuration (modular, confirm at quote)
- Warranty
- Confirmed during assessment
- Form factor
- Floor-standing, modular all-in-one
- Backup capable
- Yes
- Inverter notes
- Supplied single-phase 5S / 6S configurations combine an energy controller and BAT 5.0 / 8.0 modules. Backup requires Sigen Energy Gateway; controller power must exceed the backed-up loads for the stated 0 ms load-side disruption test.
- Documented configurations
- Single-phase SigenStor 5S and 6S configurations
- Battery modules
- SigenStor BAT 5.0 / 8.0
- Usable energy
- 5.2–23.4 kWh across the supplied 5S / 6S configurations
- Energy test conditions
- 100% depth of discharge, 0.2C charge/discharge, 25°C, beginning of life
- Nominal on-grid output
- 4,999 W (5S) / 6,000 W (6S)
- Nominal backup output
- 5,000 W (5S) / 6,000 W (6S), with Sigen Energy Gateway
- Backup switchover
- 0 ms load-side disruption under the stated test conditions; requires Gateway, Controller and Battery, with controller power above total backed-up load
- Protection
- IP66
- Operating temperature
- −20°C to +55°C
- Communication
- WLAN / Fast Ethernet / RS485; Sigen CommMod optional cellular module
- Monitoring
- mySigen App (supplied Australian Home Energy Solution brochure)
Best for
The supplied single-phase SigenStor datasheet covers 5S and 6S configurations using BAT 5.0 and BAT 8.0 modules. Documented usable energy ranges from 5.2 to 23.4 kWh across those configurations, tested at 25°C, 0.2C charge/discharge and the beginning of life.
Backup requires the external Sigen Energy Gateway together with the Energy Controller and Battery. The stated 0 ms load-side disruption is conditional on the controller's nominal power being higher than the total backed-up loads during the specified test.
The supplied Australian Home Energy Solution brochure describes mySigen App monitoring, AI energy management and optional EV charging integration. The numerical specifications here are limited to the supplied single-phase datasheet, not extended to other controllers or battery versions in the brochure.
Warranty terms are not stated in these supplied documents. Module selection, available configuration, warranty and backup scope are confirmed during assessment.
- Modular design scales usable capacity to the site
- Single-phase 5S and 6S configurations documented in the supplied datasheet
- mySigen App monitoring described in the Australian brochure
- Backup through Sigen Energy Gateway, subject to controller and load limits
Source: supplied SigenStor single-phase 5S / 6S datasheet. Monitoring context comes from the supplied Australian Home Energy Solution brochure; figures for other versions are not combined.
Product information is based on Esena's published Solar Products catalogue and supplied manufacturer datasheets. Availability, configuration and compatibility are confirmed during assessment.
