Sungrow
SBR series

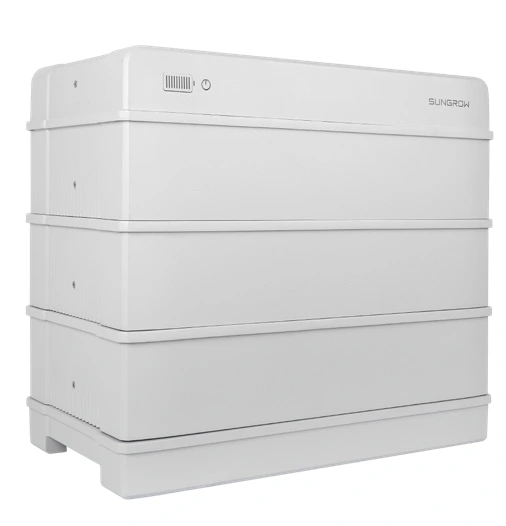

Floor-standing modular LFP storage with 6.4–25.6 kWh of usable energy.
Specifications
- Usable capacity
- 6.4–25.6 kWh (2–8 modules; 25°C, 100% DoD, 0.2C charge/discharge)
- Warranty
- 10 years; subject to the battery warranty letter's conditions
- Form factor
- Floor-standing stackable modules, indoor or outdoor
- Backup capable
- Confirmed with system configuration
- Inverter notes
- High-voltage battery with CAN communication; compatible inverter, supply phase, app monitoring and backup configuration confirmed during assessment. These are not specified by the battery datasheet.
- Models
- SBR064 / 096 / 128 / 160 / 192 / 224 / 256
- Battery chemistry
- LiFePO4 prismatic cells
- Battery module
- 3.2 kWh, 33 kg
- Usable energy
- 6.4 / 9.6 / 12.8 / 16 / 19.2 / 22.4 / 25.6 kWh
- Energy test conditions
- 25°C, 100% depth of discharge, 0.2C charge/discharge
- Module configuration
- 2–8 battery modules; SBR064 includes 2 battery modules and 1 empty module
- Rated DC power
- 3.84–15.36 kW (model dependent)
- Continuous charge / discharge current
- 30 A maximum
- Depth of discharge
- Maximum 100%, settable
- Protection
- IP55
- Operating temperature
- Charge 0°C to +50°C; discharge −20°C to +50°C
- Communication / display
- CAN / state-of-charge and status indicators; app monitoring confirmed with inverter selection
- Expansion
- Extendable during lifetime; final module configuration confirmed during assessment
Best for
The supplied Australian SBR datasheet covers SBR064 through SBR256, with two to eight 3.2 kWh battery modules and 6.4–25.6 kWh usable energy. Energy figures are tested at 25°C, 100% depth of discharge and 0.2C charge/discharge.
The battery is floor-standing for indoor or outdoor installation, with IP55 protection and CAN communication. SBR064 uses two battery modules plus one empty module; it is not a three-battery-module configuration.
The datasheet describes lifetime expansion and a 10-year warranty subject to the battery warranty letter. Compatible inverter selection, supply phase, backup scope and app monitoring are not established by this battery datasheet and are confirmed during assessment.
- 3.2 kWh modules, with 6.4–25.6 kWh documented usable energy
- Up to 30 A continuous charging and discharging current
- Floor-standing indoor or outdoor installation with IP55 protection
- Extendable during lifetime, subject to final module configuration
Source: supplied Australian SBR064–256 datasheet (21 July 2023). Usable energy is tested at 25°C, 100% DoD and 0.2C; warranty is conditional.
Product information is based on Esena's published Solar Products catalogue and supplied manufacturer datasheets. Availability, configuration and compatibility are confirmed during assessment.
